US Mag

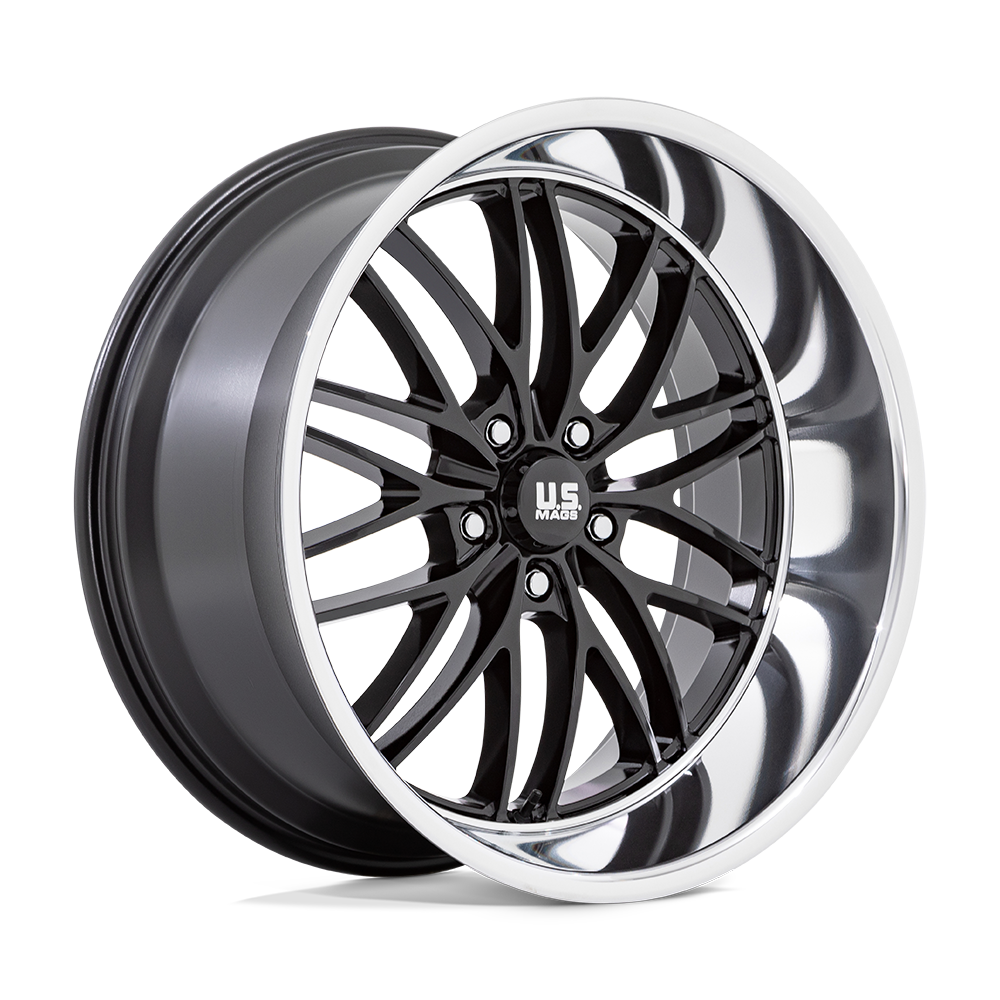

US Mags Santa Cruz Wheel 5x5 (5x127) - 1988-1998 Chevy/GMC C1500 OBS
Regular price
$446.00 USD
Regular price
Sale price
$446.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
US Mags Santa Cruz wheels, drilled 5x5 (5x127) for the 1988-1998 Chevy/GMC C1500 OBS truck. Choose your size, backspacing / offset and finish from the options above; full specs for every part number are in the table below.
Sizes: 20x8.5, 20x10, 22x9, 22x10.5
Finishes: Anthracite w/ Diamond-Cut Lip, Chrome, Gloss Black w/ Diamond-Cut Lip
Construction: One-piece cast aluminum (monoblock) construction.
Fitment: Fits 1988-1998 Chevy/GMC C1500 2WD (5x5 / 5x127 bolt pattern). Center bore 78.1mm. K1500 4x4 (6x5.5) and 2500/3500 (8x6.5) are not this listing.
Specifications
| Part # | Size | Finish | Offset | Backspacing | Load Rating | Weight | Lip Depth | Cap Part # |
|---|---|---|---|---|---|---|---|---|
| U13920857350 | 20x8.5 | Anthracite w/ Diamond-Cut Lip | +6mm | 4.99 in | 1,900 lbs | 33.4 lbs | 2.31 in | 1014-09-06GD |
| U14020857350 | 20x8.5 | Chrome | +6mm | 4.99 in | 1,900 lbs | 33.4 lbs | 2.31 in | 1014-09-06P |
| U13820857350 | 20x8.5 | Gloss Black w/ Diamond-Cut Lip | +6mm | 4.99 in | 1,900 lbs | 33.4 lbs | 2.31 in | 1014-09-06GB |
| U13920007357 | 20x10 | Anthracite w/ Diamond-Cut Lip | +6mm | 5.74 in | 1,900 lbs | 31.4 lbs | 3.88 in | 1014-09-06GD |
| U14020007357 | 20x10 | Chrome | +6mm | 5.74 in | 1,900 lbs | 31.4 lbs | 3.88 in | 1014-09-06P |
| U13820007357 | 20x10 | Gloss Black w/ Diamond-Cut Lip | +6mm | 5.74 in | 1,900 lbs | 31.4 lbs | 3.88 in | 1014-09-06GB |
| U13922907355 | 22x9 | Anthracite w/ Diamond-Cut Lip | +15mm | 5.59 in | 1,900 lbs | 37.1 lbs | 2.51 in | 1014-09-06GD |
| U14022907355 | 22x9 | Chrome | +15mm | 5.59 in | 1,900 lbs | 37.1 lbs | 2.51 in | 1014-09-06P |
| U13822907355 | 22x9 | Gloss Black w/ Diamond-Cut Lip | +15mm | 5.59 in | 1,900 lbs | 37.1 lbs | 2.51 in | 1014-09-06GB |
| U13922057357 | 22x10.5 | Anthracite w/ Diamond-Cut Lip | 0mm | 5.75 in | 1,900 lbs | 36.4 lbs | 4.5 in | 1014-09-06GD |
| U14022057357 | 22x10.5 | Chrome | 0mm | 5.75 in | 1,900 lbs | 36.4 lbs | 4.5 in | 1014-09-06P |
| U13822057357 | 22x10.5 | Gloss Black w/ Diamond-Cut Lip | 0mm | 5.75 in | 1,900 lbs | 36.4 lbs | 4.5 in | 1014-09-06GB |
Specs from US Mags (Wheel Pros). All wheels: 5x127 (5x5") bolt pattern, 78.1mm center bore.
