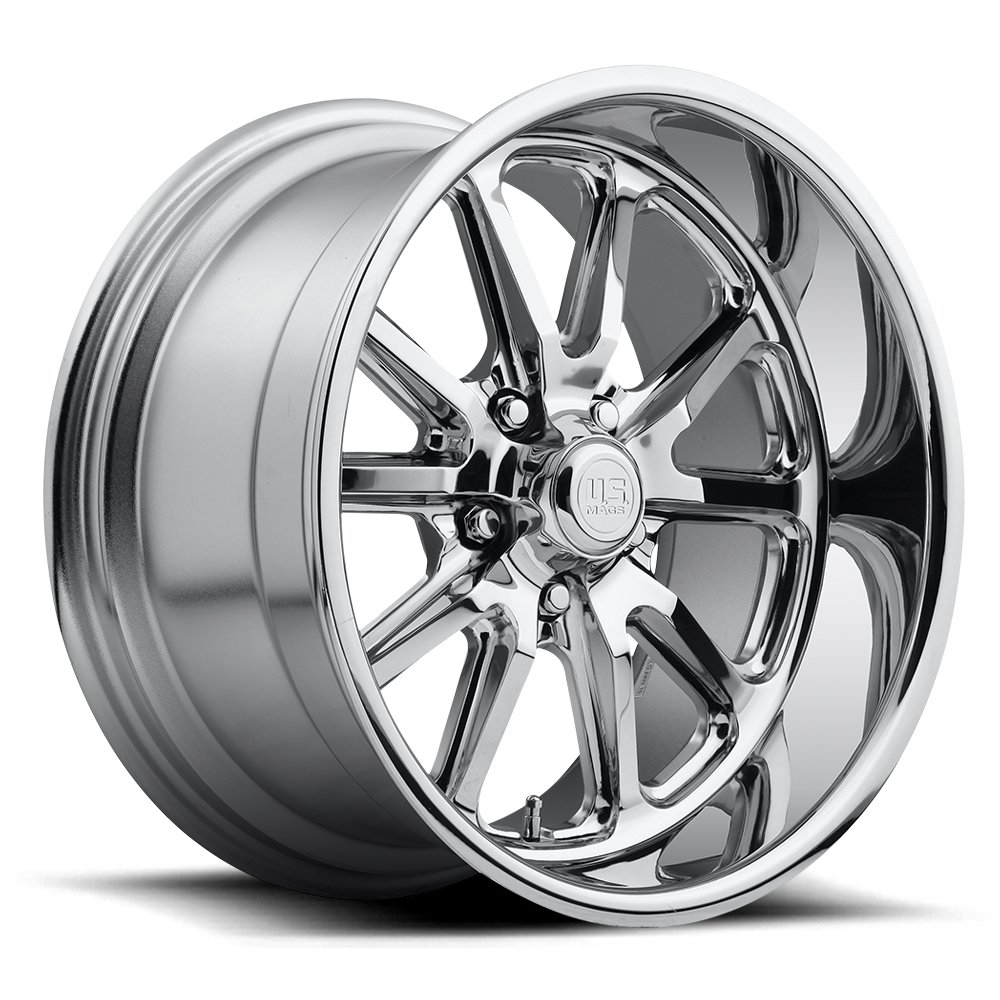

US Mags Rambler Wheel 5x5 (5x127) - 1988-1998 Chevy/GMC C1500 OBS
Regular price
$446.00 USD
Regular price
Sale price
$446.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
US Mags Rambler wheels, drilled 5x5 (5x127) for the 1988-1998 Chevy/GMC C1500 OBS truck. Choose your size, backspacing / offset and finish from the options above; full specs for every part number are in the table below.
Sizes: 17x8, 18x7, 18x8, 18x9.5, 20x8, 20x9.5, 20x10.5, 22x9, 22x11
Finishes: Chrome Plated, Gloss Black, Gloss Black & Matte Black, Gloss Black Milled, Textured Gray w/ Diamond-Cut Lip
Construction: One-piece cast aluminum (monoblock) construction.
Fitment: Fits 1988-1998 Chevy/GMC C1500 2WD (5x5 / 5x127 bolt pattern). Center bore 78.1mm. K1500 4x4 (6x5.5) and 2500/3500 (8x6.5) are not this listing.
Specifications
| Part # | Size | Finish | Offset | Backspacing | Load Rating | Weight | Lip Depth | Cap Part # |
|---|---|---|---|---|---|---|---|---|
| U11017807345 | 17x8 | Chrome Plated | +1mm | 4.54 in | 1,600 lbs | 24 lbs | 3.05 in | 1002-46P |
| U11117807345 | 17x8 | Textured Gray w/ Diamond-Cut Lip | +1mm | 4.54 in | 1,600 lbs | 24 lbs | 3.05 in | 1002-46H |
| U11018707340 | 18x7 | Chrome Plated | +1mm | 4.04 in | 1,600 lbs | 25.4 lbs | 2.55 in | 1002-46P |
| U11718707340 | 18x7 | Gloss Black Milled | +1mm | 4.04 in | 1,600 lbs | 25.4 lbs | 2.55 in | 1002-46H |
| U11118707340 | 18x7 | Textured Gray w/ Diamond-Cut Lip | +1mm | 4.04 in | 1,600 lbs | 25.4 lbs | 2.55 in | 1002-46H |
| U11018807345 | 18x8 | Chrome Plated | +1mm | 4.54 in | 1,600 lbs | 26 lbs | 3.06 in | 1002-46P |
| U11718807345 | 18x8 | Gloss Black Milled | +1mm | 4.54 in | 1,600 lbs | 26 lbs | 3.06 in | 1002-46H |
| U11018957352 | 18x9.5 | Chrome Plated | +1mm | 5.29 in | 1,600 lbs | 28 lbs | 3.8 in | 1002-46P |
| U11718957352 | 18x9.5 | Gloss Black Milled | +1mm | 5.29 in | 1,600 lbs | 28 lbs | 3.8 in | 1002-46H |
| U11020807345 | 20x8 | Chrome Plated | +1mm | 4.54 in | 1,600 lbs | 30 lbs | 2.81 in | 1002-46P |
| U12120807345 | 20x8 | Gloss Black | +1mm | 4.54 in | 1,600 lbs | 30 lbs | 2.81 in | 1002-46H |
| U12320807345 | 20x8 | Gloss Black & Matte Black | +1mm | 4.54 in | 1,600 lbs | 30 lbs | 2.81 in | 1002-46BLD |
| U11720807345 | 20x8 | Gloss Black Milled | +1mm | 4.54 in | 1,600 lbs | 31 lbs | 2.81 in | 1002-46H |
| U11120807345 | 20x8 | Textured Gray w/ Diamond-Cut Lip | +1mm | 4.54 in | 1,600 lbs | 30 lbs | 2.81 in | 1002-46H |
| U11020957352 | 20x9.5 | Chrome Plated | +1mm | 5.29 in | 1,900 lbs | 32 lbs | 3.64 in | 1002-46P |
| U12120957352 | 20x9.5 | Gloss Black | +1mm | 5.29 in | 1,900 lbs | 32 lbs | 3.64 in | 1002-46H |
| U11720957352 | 20x9.5 | Gloss Black Milled | +1mm | 5.29 in | 1,900 lbs | 32 lbs | 3.64 in | 1002-46H |
| U11120957352 | 20x9.5 | Textured Gray w/ Diamond-Cut Lip | +1mm | 5.29 in | 1,900 lbs | 32 lbs | 3.64 in | 1002-46H |
| U11720057365 | 20x10.5 | Gloss Black Milled | +20mm | 6.54 in | 1,600 lbs | 34 lbs | 3.47 in | 1002-46H |
| U11120057365 | 20x10.5 | Textured Gray w/ Diamond-Cut Lip | +20mm | 6.54 in | 1,600 lbs | 34 lbs | 3.47 in | 1002-46H |
| U11022907350 | 22x9 | Chrome Plated | +1mm | 5.04 in | 1,900 lbs | 34 lbs | 3.06 in | 1002-46P |
| U12122907350 | 22x9 | Gloss Black | +1mm | 5.04 in | 1,900 lbs | 34 lbs | 3.06 in | 1002-46H |
| U12322907350 | 22x9 | Gloss Black & Matte Black | +1mm | 5.04 in | 1,900 lbs | 34 lbs | 3.06 in | 1002-46BLD |
| U11722907350 | 22x9 | Gloss Black Milled | +1mm | 5.04 in | 1,900 lbs | 34 lbs | 3.06 in | 1002-46H |
| U11122907350 | 22x9 | Textured Gray w/ Diamond-Cut Lip | +1mm | 5.04 in | 1,900 lbs | 34 lbs | 3.06 in | 1002-46H |
| U11022117367 | 22x11 | Chrome Plated | +18mm | 6.71 in | 1,900 lbs | 37 lbs | 4.04 in | 1002-46P |
| U12122117367 | 22x11 | Gloss Black | +18mm | 6.71 in | 1,900 lbs | 37 lbs | 4.04 in | 1002-46H |
| U12322117367 | 22x11 | Gloss Black & Matte Black | +18mm | 6.71 in | 1,900 lbs | 37 lbs | 4.04 in | 1002-46BLD |
| U11122117367 | 22x11 | Textured Gray w/ Diamond-Cut Lip | +18mm | 6.71 in | 1,900 lbs | 37 lbs | 4.04 in | 1002-46H |
Specs from US Mags (Wheel Pros). All wheels: 5x127 (5x5") bolt pattern, 78.1mm center bore.
