US Mag
US Mags OBS Wheel 5x5 (5x127) - 1988-1998 Chevy/GMC C1500 OBS
Regular price
$554.00 USD
Regular price
Sale price
$554.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

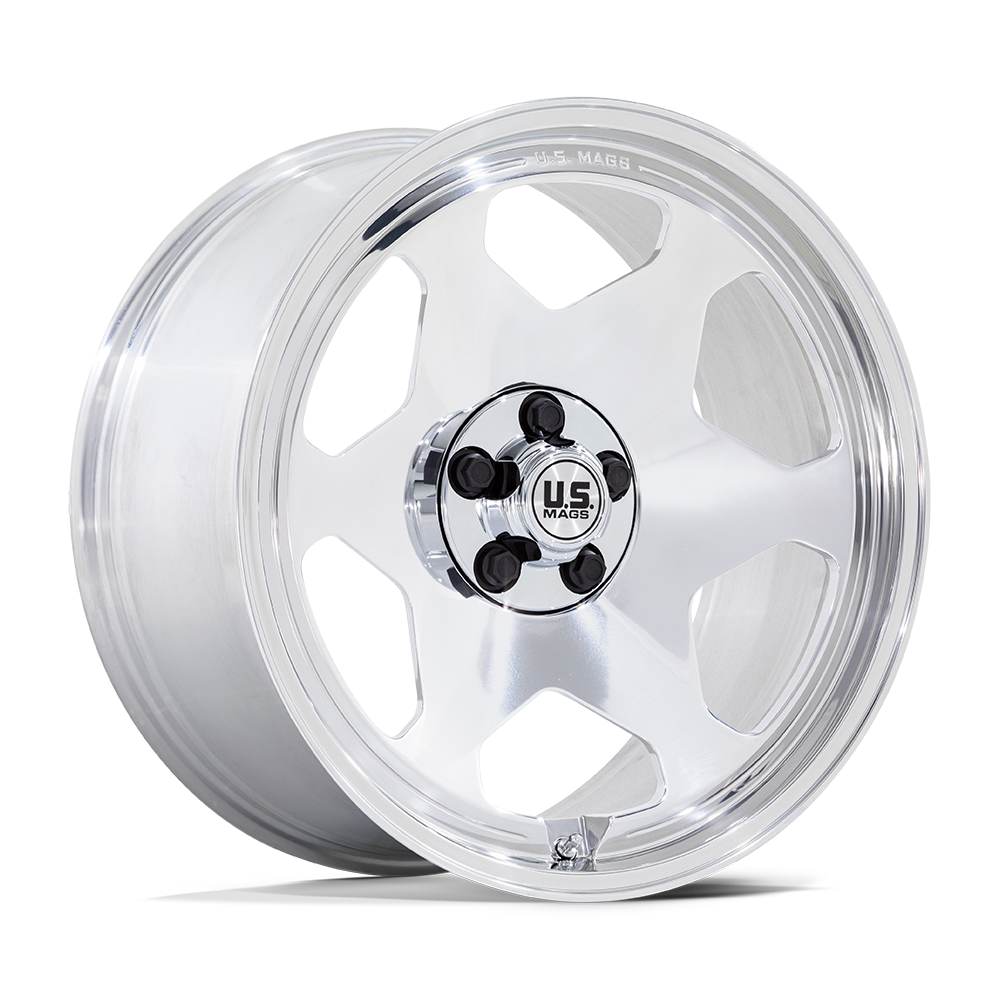

US Mags OBS wheels, drilled 5x5 (5x127) for the 1988-1998 Chevy/GMC C1500 OBS truck. Choose your size, backspacing / offset and finish from the options above; full specs for every part number are in the table below.
Sizes: 20x8, 20x10, 22x9, 22x10.5
Finishes: Fully Polished
Construction: One-piece cast aluminum (monoblock) construction.
Fitment: Fits 1988-1998 Chevy/GMC C1500 2WD (5x5 / 5x127 bolt pattern). Center bore 78.1mm. K1500 4x4 (6x5.5) and 2500/3500 (8x6.5) are not this listing.
Notes:
- 5-lug applications require Gorilla outer-thread style lug nuts, part #96148GM or equivalent (per US Mags).
Specifications
| Part # | Size | Finish | Offset | Backspacing | Load Rating | Weight | Lip Depth | Cap Part # |
|---|---|---|---|---|---|---|---|---|
| UC144HX20805001 | 20x8 | Fully Polished | +1mm | 4.54 in | 2,500 lbs | 33 lbs | 1.25 in | 1006-68 |
| UC144HX20105006 | 20x10 | Fully Polished | +6mm | 5.74 in | 2,500 lbs | 36.56 lbs | 1.25 in | 1006-68 |
| UC144HX22905015 | 22x9 | Fully Polished | +15mm | 5.59 in | 2,500 lbs | 39.48 lbs | 1.26 in | 1006-68 |
| UC144HX22055012 | 22x10.5 | Fully Polished | +12mm | 6.22 in | 2,500 lbs | 42.12 lbs | 1.26 in | 1006-68 |
Specs from US Mags (Wheel Pros). All wheels: 5x127 (5x5") bolt pattern, 78.1mm center bore.
