US Mags Indy Wheel 5x5 (5x127) - 1988-1998 Chevy/GMC C1500 OBS
Regular price
$266.00 USD
Regular price
Sale price
$266.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

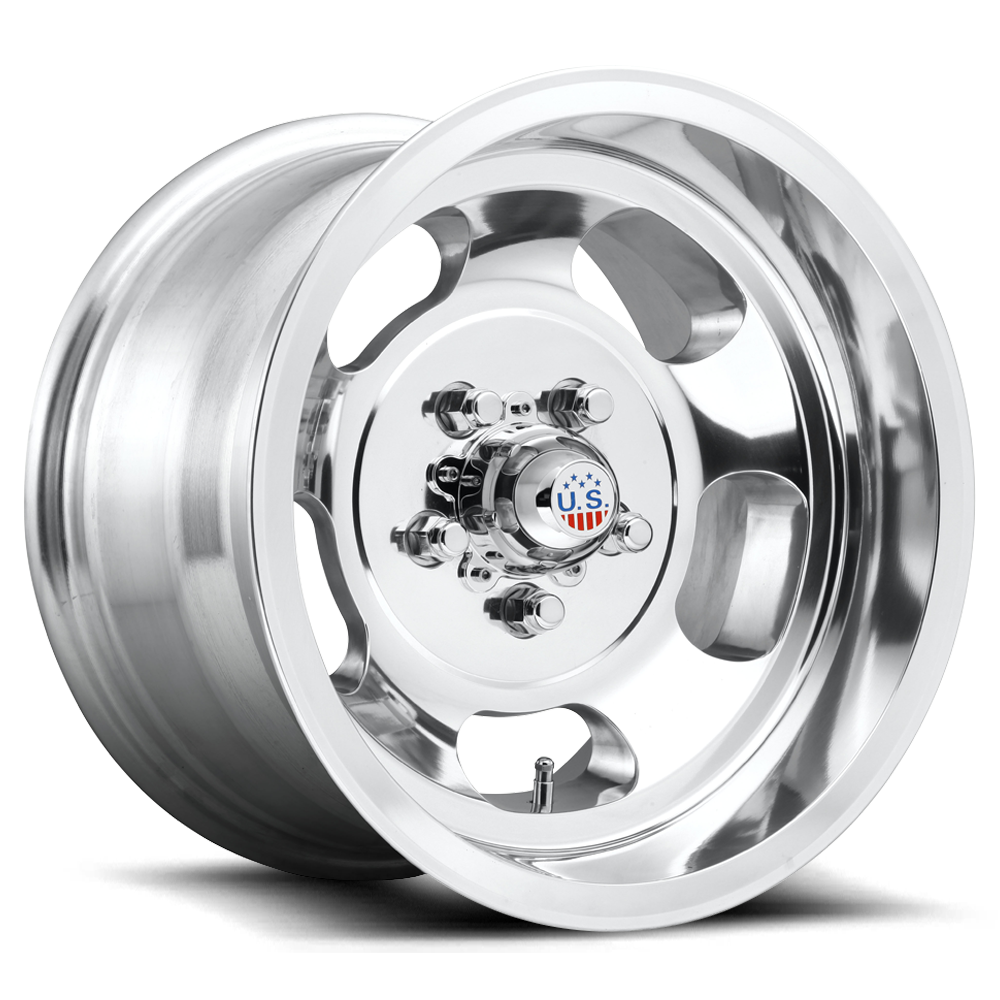

US Mags Indy wheels, drilled 5x5 (5x127) for the 1988-1998 Chevy/GMC C1500 OBS truck. Choose your size, backspacing / offset and finish from the options above; full specs for every part number are in the table below.
Sizes: 15x7, 15x8, 15x10
Finishes: High Luster Polished
Construction: One-piece cast aluminum (monoblock) construction.
Fitment: Fits 1988-1998 Chevy/GMC C1500 2WD (5x5 / 5x127 bolt pattern). Center bore 78.1mm. K1500 4x4 (6x5.5) and 2500/3500 (8x6.5) are not this listing.
Notes:
- Note from US Mags: center caps are sold separately for all 5x5.5, 6x5.5 and 8x6.5 Indy wheels.
Specifications
| Part # | Size | Finish | Offset | Backspacing | Load Rating | Weight | Lip Depth | Cap Part # |
|---|---|---|---|---|---|---|---|---|
| U10115707337 | 15x7 | High Luster Polished | -5mm | 3.80 in | 1,600 lbs | 19 lbs | 1.2 in | 1002-20 |
| U10115807340 | 15x8 | High Luster Polished | -12mm | 4.03 in | 1,600 lbs | 18 lbs | 2.19 in | 1002-20 |
| U10115007335 | 15x10 | High Luster Polished | -50mm | 3.53 in | 1,900 lbs | 24 lbs | 3.72 in | 1002-20 |
Specs from US Mags (Wheel Pros). All wheels: 5x127 (5x5") bolt pattern, 78.1mm center bore.
