US Mags Bullet Wheel 5x5 (5x127) - 1988-1998 Chevy/GMC C1500 OBS
Regular price
$431.00 USD
Regular price
Sale price
$431.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

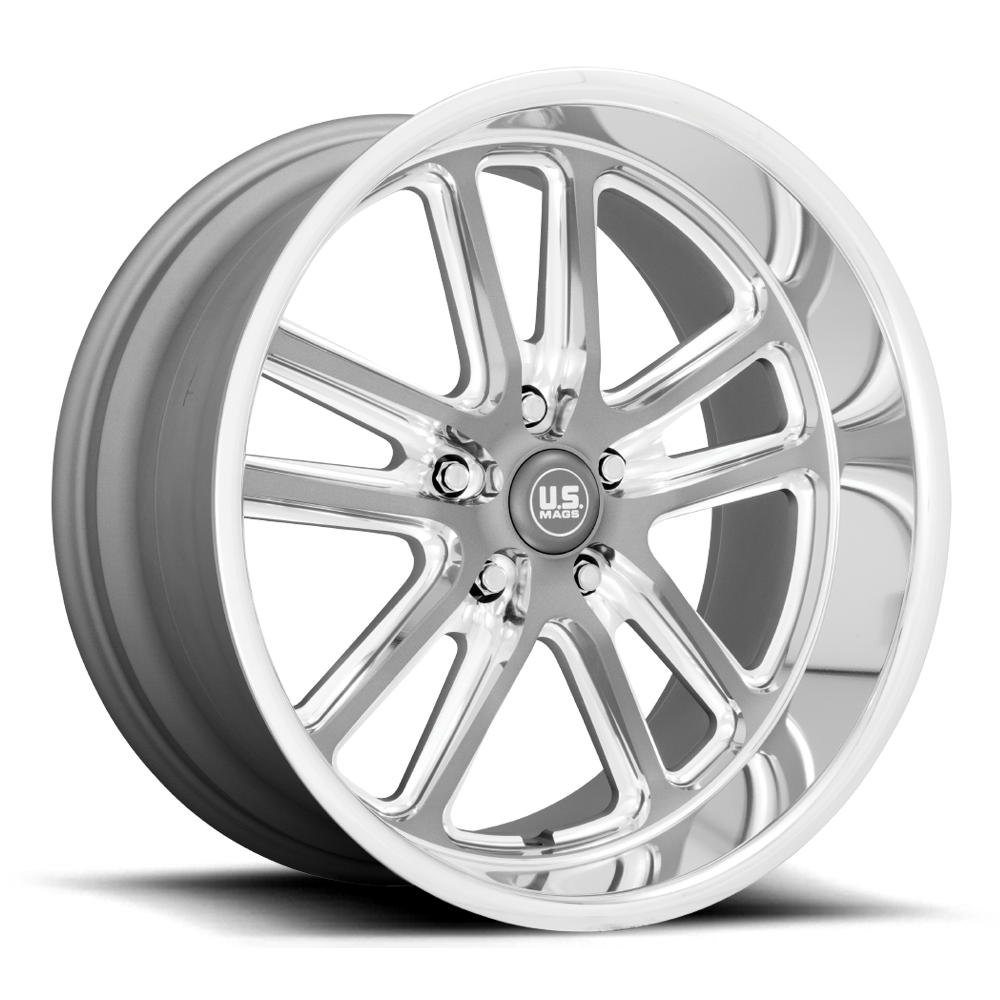

US Mags Bullet wheels, drilled 5x5 (5x127) for the 1988-1998 Chevy/GMC C1500 OBS truck. Choose your size, backspacing / offset and finish from the options above; full specs for every part number are in the table below.
Sizes: 17x7, 18x8, 20x8, 20x9.5, 22x9, 22x11
Finishes: Chrome, Textured Gunmetal w/ Milled Edge
Construction: One-piece cast aluminum (monoblock) construction.
Fitment: Fits 1988-1998 Chevy/GMC C1500 2WD (5x5 / 5x127 bolt pattern). Center bore 78.1mm. K1500 4x4 (6x5.5) and 2500/3500 (8x6.5) are not this listing.
Specifications
| Part # | Size | Finish | Offset | Backspacing | Load Rating | Weight | Lip Depth | Cap Part # |
|---|---|---|---|---|---|---|---|---|
| U13117707340 | 17x7 | Chrome | +1mm | 4.04 in | 1,600 lbs | 25.4 lbs | 2.08 in | 1002-46P |
| U13017707340 | 17x7 | Textured Gunmetal w/ Milled Edge | +1mm | 4.04 in | 1,600 lbs | 24.7 lbs | 2.08 in | 1002-46GD |
| U13118807345 | 18x8 | Chrome | +1mm | 4.54 in | 1,600 lbs | 27.6 lbs | 2.59 in | 1002-46P |
| U13018807345 | 18x8 | Textured Gunmetal w/ Milled Edge | +1mm | 4.54 in | 1,600 lbs | 27.3 lbs | 2.59 in | 1002-46GD |
| U13120807345 | 20x8 | Chrome | +1mm | 4.54 in | 1,600 lbs | 29.3 lbs | 2.89 in | 1002-46P |
| U13020807345 | 20x8 | Textured Gunmetal w/ Milled Edge | +1mm | 4.54 in | 1,600 lbs | 29.3 lbs | 2.89 in | 1002-46GD |
| U13120957352 | 20x9.5 | Chrome | +1mm | 5.29 in | 1,600 lbs | 30.4 lbs | 3.64 in | 1002-46P |
| U13020957352 | 20x9.5 | Textured Gunmetal w/ Milled Edge | +1mm | 5.29 in | 1,600 lbs | 30.4 lbs | 3.64 in | 1002-46GD |
| U13122907350 | 22x9 | Chrome | +1mm | 5.04 in | 1,900 lbs | 37.3 lbs | 3.13 in | 1002-46P |
| U13022907350 | 22x9 | Textured Gunmetal w/ Milled Edge | +1mm | 5.04 in | 1,900 lbs | 37.3 lbs | 3.13 in | 1002-46GD |
| U13122117367 | 22x11 | Chrome | +18mm | 6.71 in | 1,900 lbs | 38.6 lbs | 3.96 in | 1002-46P |
| U13022117367 | 22x11 | Textured Gunmetal w/ Milled Edge | +18mm | 6.71 in | 1,900 lbs | 38.6 lbs | 3.96 in | 1002-46GD |
Specs from US Mags (Wheel Pros). All wheels: 5x127 (5x5") bolt pattern, 78.1mm center bore.
