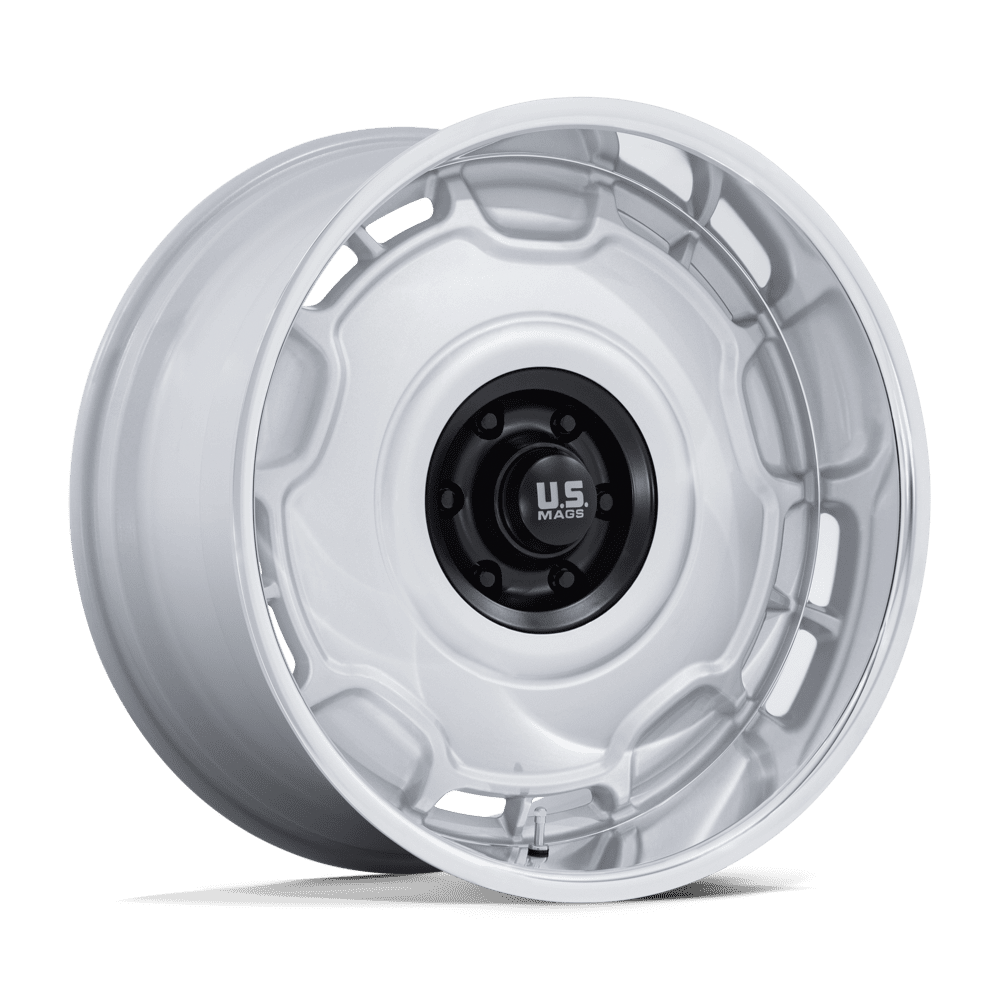

US Mags Arlington Wheel 5x5 (5x127) - 1988-1998 Chevy/GMC C1500 OBS
Regular price
$560.00 USD
Regular price
Sale price
$560.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
US Mags Arlington wheels, drilled 5x5 (5x127) for the 1988-1998 Chevy/GMC C1500 OBS truck. Choose your size, backspacing / offset and finish from the options above; full specs for every part number are in the table below.
Sizes: 20x8.5, 20x10, 20x11, 22x9, 22x10.5
Finishes: Polished, Silver w/ Matte Black Center & Diamond-Cut Lip
Construction: One-piece cast aluminum (monoblock) construction.
Fitment: Fits 1988-1998 Chevy/GMC C1500 2WD (5x5 / 5x127 bolt pattern). Center bore 78.1mm. K1500 4x4 (6x5.5) and 2500/3500 (8x6.5) are not this listing.
Specifications
| Part # | Size | Finish | Offset | Backspacing | Load Rating | Weight | Lip Depth | Cap Part # |
|---|---|---|---|---|---|---|---|---|
| UC146HX20855001 | 20x8.5 | Polished | +1mm | 4.79 in | 2,500 lbs | 34.8 lbs | 3.43 in | 1014-09-06H |
| UC146SD20855001 | 20x8.5 | Silver w/ Matte Black Center & Diamond-Cut Lip | +1mm | 4.79 in | 2,500 lbs | 34.8 lbs | 3.43 in | 1014-09-06MB |
| UC146HX20105006 | 20x10 | Polished | +6mm | 5.74 in | 2,500 lbs | 36.8 lbs | 3.97 in | 1014-09-06H |
| UC146SD20105006 | 20x10 | Silver w/ Matte Black Center & Diamond-Cut Lip | +6mm | 5.74 in | 2,500 lbs | 36.8 lbs | 3.97 in | 1014-09-06MB |
| UC146HX20115006N | 20x11 | Polished | -6mm | 5.76 in | 2,500 lbs | 38.1 lbs | 4.92 in | 1014-09-06H |
| UC146SD20115006N | 20x11 | Silver w/ Matte Black Center & Diamond-Cut Lip | -6mm | 5.76 in | 2,500 lbs | 38.1 lbs | 4.92 in | 1014-09-06MB |
| UC146HX22905015 | 22x9 | Polished | +15mm | 5.59 in | 2,500 lbs | 40.6 lbs | 3.58 in | 1014-09-06H |
| UC146SD22905015 | 22x9 | Silver w/ Matte Black Center & Diamond-Cut Lip | +15mm | 5.59 in | 2,500 lbs | 40.6 lbs | 3.58 in | 1014-09-06MB |
| UC146HX22055012 | 22x10.5 | Polished | +12mm | 6.22 in | 2,500 lbs | 43.7 lbs | 4.43 in | 1014-09-06H |
| UC146SD22055012 | 22x10.5 | Silver w/ Matte Black Center & Diamond-Cut Lip | +12mm | 6.22 in | 2,500 lbs | 43.7 lbs | 4.43 in | 1014-09-06MB |
Specs from US Mags (Wheel Pros). All wheels: 5x127 (5x5") bolt pattern, 78.1mm center bore.
