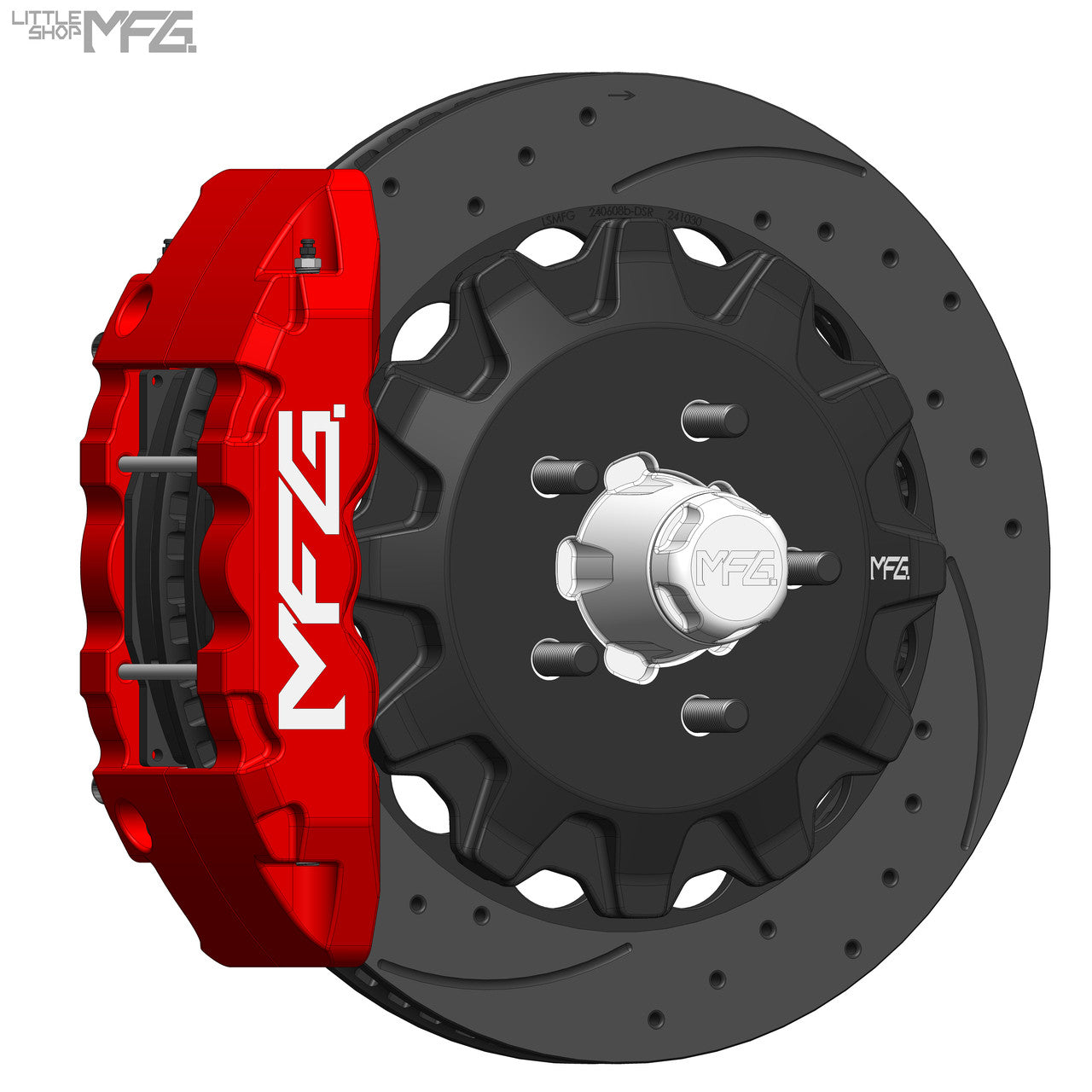

Little Shop MFG 16" Front Big Brake Kit (Belltech 2503/2504 Spindles) | 1988-1998 Chevy/GMC C1500 OBS

A 16-inch front big brake upgrade built around Belltech 2503/2504 C1500 drop spindles for 88-98 Chevy/GMC C1500 OBS trucks. It uses 6-piston MFG calipers with machined hubs, hats and brackets that bolt directly to the Belltech spindle. Belltech spindles can be added to the same order.

Features

• 16" drilled and slotted rotors, included at no extra charge
• 6-piston MFG calipers
• Machined hubs, hats and radial-mount brackets
• Direct bolt-on to the Belltech 2503/2504 spindle
• Fits inside most 20" wheels

What's Included

• MFG calipers in the color you choose
• Drilled/slotted 16" rotors
• Machined hubs and hats
• Radial-mount caliper brackets
• Belltech spindles and braided stainless hoses only if selected above

Fitment

• Verified fitment: 1988-1998 2WD Chevy/GMC C1500 pickups and 2WD Suburban, Tahoe and Yukon. The manufacturer lists 1988-2000; 1999-2000 coverage is not confirmed, so ask before ordering for those years.
• Not for K1500 / 4WD trucks or any 2500. This kit is for 2WD C1500-platform trucks only.
• Requires Belltech 2503 or 2504 C1500 drop spindles (these also need a 1.25" rotor).
• 88-91 regular-cab C1500s come with 1.00" rotors and need a spindle swap first (to an 88-91 extended-cab, 90-93 454SS, or any 92-up spindle). Measure your stock rotor before ordering. Belltech spindles do not remove this requirement.

Spindle and Wheel Requirements

• Minimum wheel size: 20" (the kit fits inside most 20" wheels). The 16" front hat sits about 0.13" further outboard than stock, so test fit your wheels.

Lead Times

• Lead time: allow 4-6 weeks.
• Custom caliper color: allow 4-5 weeks; send the OEM paint code in the order notes. Available on MFG calipers for complete front-and-rear orders only; no tri-coat or Kandy.

Additional Options and Notes

• Custom wheel pattern (not selectable above): kits ship supplied for the stock wheel pattern. The manufacturer offers machining to a custom pattern as a special order (listed at +$545). Contact DC Fab before ordering and give the pattern in your order notes.

Instructions and Downloads

• Installation instructions (PDF)

Fitment and options are as stated by the manufacturer. Please confirm your truck, axle and spindle before ordering.
