485c Dual Pack Stealth Black (Gen 2)

$525.95 USD
$525.95 USD
Shipping calculated at checkout.

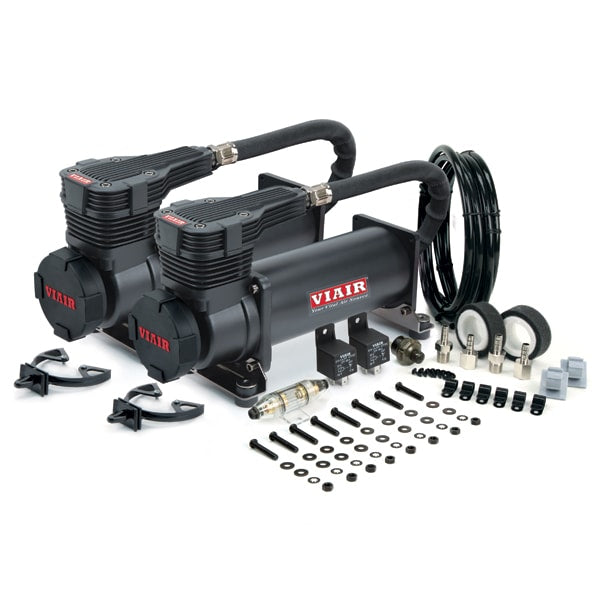

485c Dual Pack Stealth Black(Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo (200 PSI)

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs..

Features & Specifications

Features
 Specifications
– (2) 485C (Platinum or Stealth Black) Compressors
w/Thermal Overload Protectors		 – 12-Volt
– (2) Air Filter Assemblies – Permanent Magnetic Motor
– (2) VIAIR Removable Filter Covers – Duty Cycle: 100% @ 200 PSI
– (2) Remote Mount Brackets – Max. Working Pressure: 200 PSI
– (2) Sets of Remote Mount Fittings – Max. Air Tank Size: 10.0 Gallon
– (2) Sets of Spare Air Filter Elements – Combined Max. Amp Draw: 44 Amps
– (2) Leader Hose Clips – Ingress Protection Rating: IP67
– (6) Air Line Clips with Included Hardware – Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
– (8) Sets of Nuts, Bolts, Washers and Lock Washers – Net Weight: 22.10 lbs.
– (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) –
– (2) 40-Amp Relays –
– (1) One Pressure Switch (165 PSI on, 200 PSI off) –
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve –
– Air Line (For Remote Mount Filter Installation) –



Fill Rates

2.5 Gallon Tank Fill Rate
0 to 200 PSI 2 min. 20 sec. (± 05 sec.)
165 to 200 PSI 35 sec. (± 03 sec.)
5.0 Gallon Tank Fill Rate
0 to 200 PSI 4 min. 50 sec. (± 15 sec.)
165 to 200 PSI 1 min. 15 sec. (± 05 sec.)
